Refreshing Access Tokens in ASP.NET Core

ClientCredentialFlowAuth0

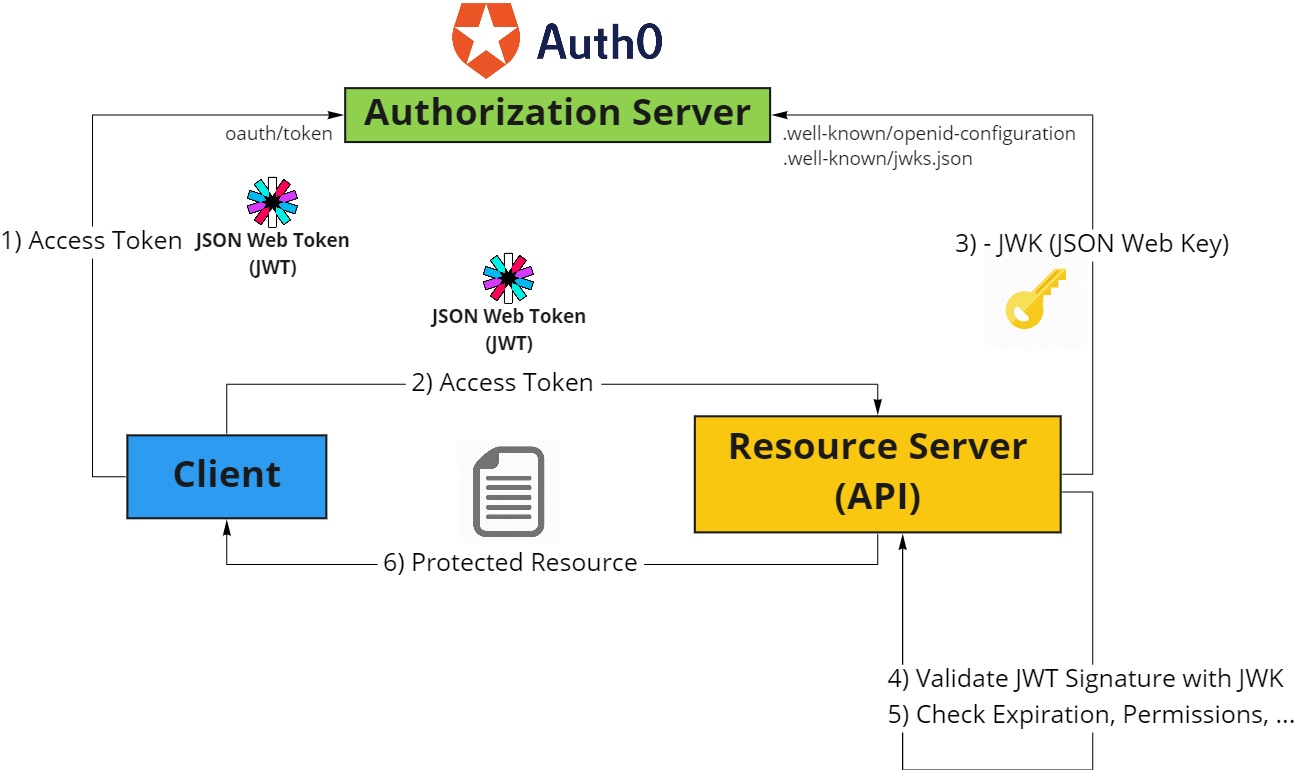

Client Credential Flow

Client acquires Access Token from Authorization Server using
- ClientId
- Client Secret
- Audience
- GrantType
Client sends Access Token to Resource Server
Resource Server retrieves jwks.json
- ASP.NET Core takes care of caching the jwks.json. So only the first API request will be slow.
Resource Server validates JWT Signature
Resource Server checks expiration, permissions and so on
Client receives Protected Resources

Setup Auth0 for Machine-to-Machine Authentication

https://auth0.com/docs/applications/set-up-an-application/register-machine-to-machine-applications

Taking care of Access Token expiration

Per default Auth0 returns access tokens with a lifetime of 24 hours. After that you have to acquire a new token. Auth0 also has several access token limits/quotas e.g. requests/per second or overall amount of tokens per month. So you definately need to think about access token management.

Building a Microsoft Dependency Injection container integrated solution by enhancing the extension AddHttpClient

As described in Issues with the original HttpClient class available in .NET Core, it is recommended to use the provided Microsoft DI container facilities that use IHttpClientFactory under the hood.

My idea is to enhance the already given extension for Typed Http Clients

public static IHttpClientBuilder AddHttpClient<TClient, TImplementation>(
    this IServiceCollection services, Action<HttpClient> configureClient)

with a new extention

public static IHttpClientBuilder AddAuthenticatedHttpClient<TClient, TImplementation>(
    this IServiceCollection serviceCollection, AuthenticationConfig authenticationConfig,
    Action<HttpClient> configure)

in order register an HttpClient that takes care of (re-)acquiring access tokens transparently.

Configuration (e.g. Startup.cs):

var authenticationConfig = new AuthenticationConfig
{
    // Auth0 tenant token endpoint
    Url = ".../oauth/token",
    Parameters = new Parameters
    {
        Audience = "...",
        ClientId = "...",
        ClientSecret = "...",
        GrantType = "client_credentials"
    }
};
serviceCollection.AddAuthenticatedHttpClient<IService, Service>(authenticationConfig,
    x => x.BaseAddress = new Uri("https://apiAddress/"));

As a result of returning an IHttpClientBuilder like it is already done with AddHttpClient(..) we can add additional functionality with AddHttpMessageHandler or using Microsoft.Extensions.DependencyInjection.PollyHttpClientBuilderExtensions.AddPolicyHandler extension to add Http transient error handling.

serviceCollection
    // Takes care of access tokens
    .AddAuthenticatedHttpClient<IService, Service>(authenticationConfig,
        x => x.BaseAddress = new Uri("https://localhost:5001/"))
    // Takes care of transient Http failures
    .AddPolicyHandler((provider, message) => GetPolicy(provider));

private static IAsyncPolicy<HttpResponseMessage> GetPolicy(IServiceProvider serviceProvider)
{
    var jitterer = new Random();
    var retryWithJitterPolicy = HttpPolicyExtensions
        .HandleTransientHttpError()
        .OrResult(msg => msg.StatusCode == System.Net.HttpStatusCode.NotFound)
        .WaitAndRetryAsync(6,
            (retryAttempt) => TimeSpan.FromSeconds(Math.Pow(2, retryAttempt))
                              + TimeSpan.FromMilliseconds(jitterer.Next(0, 100)),
            (result, timespan, context) =>
            {
                var logger = serviceProvider.GetService<ILogger<Program>>();
                logger.LogWarning($"retrying in {timespan.TotalSeconds}seconds ...");
            });

    return retryWithJitterPolicy;
}

Solution implementation

public static class ServiceCollectionExtensions
{
    public static IHttpClientBuilder AddAuthenticatedHttpClient<TClient, TImplementation>(
        this IServiceCollection serviceCollection,
        AuthenticationConfig authenticationConfig, Action<HttpClient> configure)
        where TImplementation : class, TClient
        where TClient : class
    {
        serviceCollection.AddSingleton(authenticationConfig);
        serviceCollection.AddTransient<AuthenticationHandler>();
        serviceCollection.AddMemoryCache();
        return serviceCollection
            .AddHttpClient<TClient, TImplementation>(configure)
            .AddHttpMessageHandler(provider => provider.GetRequiredService<AuthenticationHandler>());
    }
}

public class AuthenticationHandler : DelegatingHandler
{
    private readonly AuthenticationConfig _authenticationConfig;
    private readonly IHttpClientFactory _httpClientFactory;
    private readonly IMemoryCache _memoryCache;
    private readonly ILogger<AuthenticationHandler> _logger;
    private static readonly SemaphoreSlim SemaphoreSlim = new SemaphoreSlim(1);
    private const string AccessTokenCacheKey = "AccessTokenCacheKey";
    public AuthenticationHandler(AuthenticationConfig authenticationConfig, IHttpClientFactory httpClientFactory, IMemoryCache memoryCache, ILogger<AuthenticationHandler> logger)
    {
        _authenticationConfig = authenticationConfig;
        _httpClientFactory = httpClientFactory;
        _memoryCache = memoryCache;
        _logger = logger;
    }
    protected override async Task<HttpResponseMessage> SendAsync(HttpRequestMessage request, CancellationToken cancellationToken)
    {
        if (_memoryCache.TryGetValue(AccessTokenCacheKey, out JwtSecurityToken cachedToken))
        {
            request.Headers.Authorization = new AuthenticationHeaderValue("bearer", cachedToken.RawData);
            return await base.SendAsync(request, cancellationToken);
        }
        await SemaphoreSlim.WaitAsync(cancellationToken);
        try
        {
            if (_memoryCache.TryGetValue(AccessTokenCacheKey, out cachedToken))
            {
                request.Headers.Authorization = new AuthenticationHeaderValue("bearer", cachedToken.RawData);
                return await base.SendAsync(request, cancellationToken);
            }
            _logger.LogInformation("Token expired.");
            var accessToken = await AcquireAccessToken(_authenticationConfig);
            var absoluteExpiration = new DateTimeOffset(accessToken.ValidTo, TimeSpan.Zero);
            _logger.LogInformation($"New token is valid until {absoluteExpiration}.");
            _memoryCache.Set(AccessTokenCacheKey, accessToken, absoluteExpiration.AddSeconds(-5));
            request.Headers.Authorization = new AuthenticationHeaderValue("bearer", accessToken.RawData);
            return await base.SendAsync(request, cancellationToken);
        }
        finally
        {
            SemaphoreSlim.Release();
        }
    }

    private async Task<JwtSecurityToken> AcquireAccessToken(AuthenticationConfig config)
    {
        var httpClient = _httpClientFactory.CreateClient(config.Url);
        httpClient.DefaultRequestHeaders.Accept.Add(new MediaTypeWithQualityHeaderValue("application/json"));
        var body = JsonConvert.SerializeObject(config.Parameters, Formatting.Indented);
        var responseMessage = await httpClient.PostAsync(new Uri(config.Url), new StringContent(body, Encoding.UTF8, "application/json"));
        var content = await responseMessage.Content.ReadAsStringAsync();
        var accessToken = JObject.Parse(content)["access_token"].Value<string>();
        var tokenHandler = new JwtSecurityTokenHandler();
        var jwtSecurityToken = tokenHandler.ReadJwtToken(accessToken);
        return jwtSecurityToken;
    }
}

Usage:

public interface IService
{
    Task<string> GetTest();
}

public class Service : IService
{
    private readonly HttpClient _client;

    public Service(HttpClient client)
    {
        _client = client;
    }

    public async Task<string> GetTest()
    {
        // we can simply use HttpClient and don't have to take care of any authentication
        // or retry code
        var httpResponseMessage = await _client.GetAsync("/test");
        var content = await httpResponseMessage.Content.ReadAsStringAsync();
        return content;
    }
}
